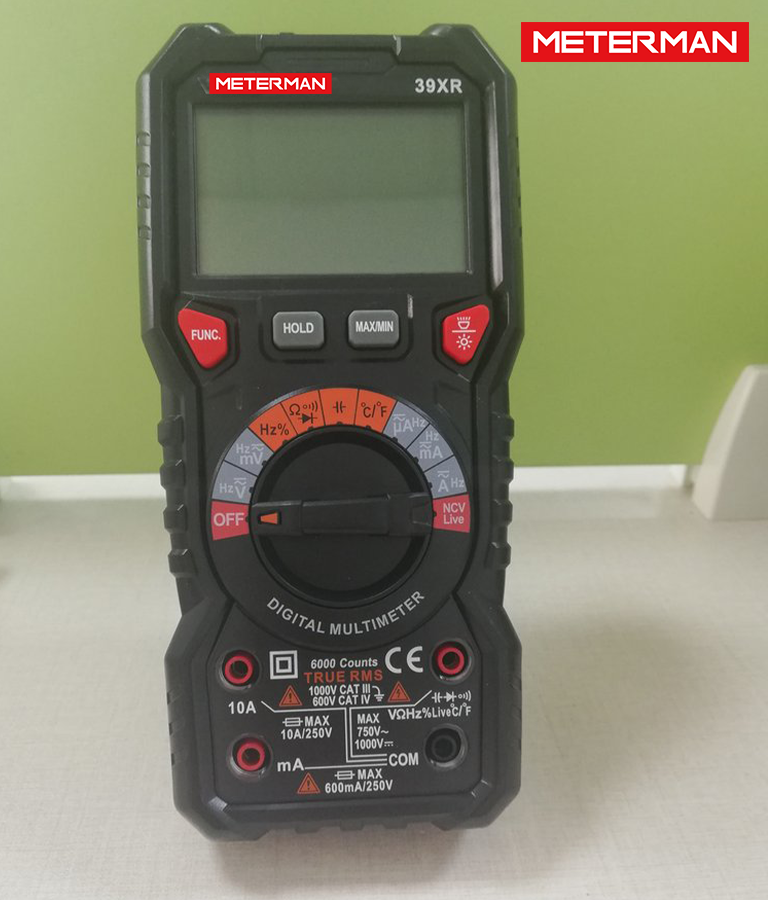

Wavetek 39XR Digital Multimeter
Regular price $99.99 Sale price $59.99 Save $40.00
Tax included.
Shipping calculated at checkout.
Wavetek Meterman 39XR Digital Multimeter
An advanced multimeter designed to be used safely and accurately by electricians at workplaces or homeowners and DIYer who need more capabilities than the standard measuring tool.
- Light up the terminals: LED indication light as input terminal guidance
- CAT III 1000V, CAT 600V safety rating
- Double insulation, robust outer case
- Includes test leads, K-Type thermocouple, batteries and user manual
WIDE APPLICATIONS
Meterman's digital multimeter features 6000 counts auto-ranging for accurate measurement of AC/DC voltage, AC/DC current(DC is the default), resistance, continuity, frequency, capacitance and diode, liquid temperature, wire on-off, Battery checking. This advanced tester can diagnose the automotive, industrial and household electrical issue
EASY OPERATION
Switch the dial and the LED lights on the jacks will shine accordingly. To plug in the leads is real easy. Large 2.9” LCD backlight display. Dual Display with bar graph. Flashlight on the back ensures easy use in dimly lit places. Stable Kickstand, pen slot on the back.AutoRange/Analog Bar Display/True RMS/NCV/Data hold/Backlight/LED lamp/Diode test/Triode test/Continuity/Overload protection/Low Battery Indication/Auto Power Off/Short-circuit protection.
SAFETY FIRST & MULTI-FUNCTION
The IEC Rated CAT III 1000V, CAT IV 600V, CE, RoHS certified. Anti-Burn with double ceramic fuse and thermistor protection circuit. High Voltage Protection is active on all ranges. Double insulated unit. Silicone protective case prevents it from falling damage and Non-contact voltage testing and Live function with sound and light alarm. The Sceen changes to red while detecting live wire. Low battery prompt, Data retention, Max/Min data, Auto Power-Off, Auto-Ranging.
WIDELY APPLICABLE
Meterman Test and Measurement products include digital multimeters, clamp meter is an ideal tool that can be applied to colleges and universities, smelting, telecommunications, manufacturing, oil, defense, power, foundry, the circuit of power equipment inspection, and maintenance and repairs.
WIDELY APPLICABLE
Meterman Test and Measurement products include digital multimeters, clamp meter is an ideal tool that can be applied to colleges and universities, smelting, telecommunications, manufacturing, oil, defense, power, foundry, the circuit of power equipment inspection, and maintenance and repairs.
Specification:
- Safety Level/Certification: IEC-61010-1 CATⅢ 1000V, CAT IV 600V, double insulation
- Display: True RMS, 6000 counts, 3 5/6 digits
- Overload Display: Display OL
- DC Voltage: 600mV/6V/60V/600V±(0.5%+3), 1000V ±(0.5%+3)
- AC Voltage: 600mV/6V/60V/600V/750V±(0.8%+5)
- DC Current: 600μA/6000μA/60mA/600mA/10A±(1.2%+3)
- AC Current: 600μA/6000μA/60mA/600mA/10A±(1.5%+3)
- Resistance: 600Ω/6KΩ/60KΩ/600KΩ/±(1.0%+3),6MΩ/60MΩ ±(1.5%+3)
- Capacitance: 10nf/100nf/1000nf/10uf/100uf/1000uf±(4.0%+5), 10MF/100MF±(5.0%+5)
- Frequency/Duty:10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz ±(1.0%+3),10MHz/±(3.0%+3)
